Ẹrọ OBD
  • Ẹrọ OBD Ẹrọ OBD

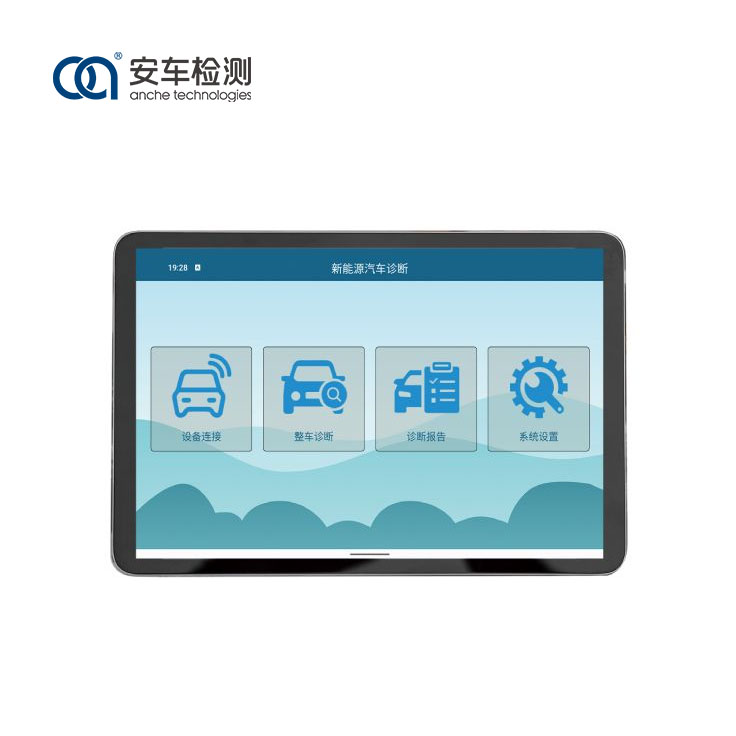

Ẹrọ OBD

Da lori imọ-ẹrọ iwadii Intanẹẹti tuntun, Ẹrọ OBD jẹ iwadii aṣiṣe pataki kan, wiwa, itọju ati ohun elo iṣakoso fun awọn ọkọ ayọkẹlẹ agbara tuntun. O da lori ẹrọ ẹrọ Android+QT tuntun tuntun, eyiti o ṣe irọrun iṣọpọ aala-aala. O ni wiwa awọn awoṣe ọkọ ayọkẹlẹ pipe julọ, iyọrisi ayẹwo aṣiṣe fun gbogbo awọn awoṣe ọkọ ayọkẹlẹ agbara tuntun ati awọn eto. Ni idapọ pẹlu ilọsiwaju ti awọn ile-iṣẹ PTI ati awọn idanileko, o ṣopọ jinlẹ ati pe o wa ni ila pẹlu ohun elo oju iṣẹlẹ kikun ti iṣayẹwo ọkọ ayọkẹlẹ titun ati ọja iṣẹ itọju.

Fi ibeere ranṣẹ

ọja Apejuwe

Ẹrọ OBD le bo julọ awọn awoṣe ọkọ ayọkẹlẹ agbara titun ni ọja lọwọlọwọ. Ọja yii gba imọ-ẹrọ ifibọ pẹlu module titẹ taya ti a ṣe sinu, ṣe atilẹyin awọn iṣẹ pataki bii ayẹwo ọkọ ayọkẹlẹ agbara tuntun, idanwo idii batiri, kika koodu aṣiṣe, ati imukuro koodu aṣiṣe. O ni awọn iṣẹ to lagbara ati iṣẹ iduroṣinṣin.

OBD Device


Ohun elo

Ẹrọ OBD jẹ lilo akọkọ fun ayewo ati itọju awọn paati gẹgẹbi awọn eto ọkọ ayọkẹlẹ agbara titun, awọn akopọ batiri, ati eto iṣakoso eto batiri / moto / itanna, ati igbelewọn ti agbara titun ti awọn iṣowo ọkọ ayọkẹlẹ ti a lo ati iṣakoso ti agbara tuntun. igbeyewo awọn ile-iṣẹ ati awọn idanileko.

Awọn anfani

1. O jẹ ẹrọ iwadii okeerẹ fun awọn ọkọ ayọkẹlẹ agbara titun, ti o bo lori 95% ti awọn awoṣe ọkọ ayọkẹlẹ agbara titun, pẹlu iṣedede giga ati data ti o ni kikun.

2. O ṣe atilẹyin idanwo pataki fun ayẹwo idii batiri.

3. O atilẹyin Iroyin iran pẹlu ọkan tẹ.

4. O ṣe atilẹyin ipamọ data ati idaduro ẹri.

5. O ṣe iranlọwọ fun awọn onimọ-ẹrọ lati mu awọn ọgbọn itọju wọn dara ati ni kiakia yanju awọn iṣoro ni ayẹwo ati awọn iṣoro itọju fun awọn ọkọ ayọkẹlẹ agbara titun.

6. O le jinna ni idagbasoke ati sopọ awọn ọna ṣiṣe iṣowo fun awọn ọkọ agbara titun awọn iṣẹ ayewo lododun.

7. Apẹrẹ apọjuwọn iṣẹ-ṣiṣe n ṣe iṣeduro iṣọpọ ti awọn eto ṣiṣe ayẹwo ati itọju ti o yẹ.

8. Apẹrẹ ile-iṣẹ tuntun ati ibamu fun agbegbe iṣẹ ti awọn ile-iṣẹ idanwo ọkọ ayọkẹlẹ titun ati awọn idanileko.

Awọn paramita

Awọn ipilẹ ipilẹ

Iwọn

275.5 * 187.5 * 22mm

Iwọn

1,000g

Àwọ̀

Dudu

Iboju

10.1 inch IPS iboju, 16:10, ipinnu: 800*1280, 450 nits, 5-ojuami G+G iboju capacitive

Kamẹra

Iwaju 5.0MP + ru 130MP

Adaparọ agbara

AC100V-240V, 50Hz/60Hz, ti o jade DC 5V/3A

I/O ni wiwo

USB 2.0 Iru-A * 1, USB Iru C * 1

Kaadi SIM * 1, TF kaadi * 1 (o pọju 512GB)

HDMI 1.4a * 1

12pin Pogo Pin * 1

Φ3.5mm jaketi agbekọri boṣewa * 1

Φ3.5mm DC agbara ni wiwo *1

Awọn paramita iṣẹ

isise

MTK 8 mojuto, 2.0GHz

Eto isesise

Android 11/GMS + eto ayẹwo ti ara ẹni

Iranti

6GB+64GB

Batiri

Ti a ṣe sinu batiri lithium-ion polymer 8,000mAh/3.7V

Ifarada

Nipa 8h (iwọn 50% ati imọlẹ lumen 200 nipasẹ aiyipada, ti ndun fidio 1080P HD)

Alailowaya ibaraẹnisọrọ

WiFi

WiFi 5 ati 802.11a/b/g/n, igbohunsafẹfẹ 2.4G/5.0G

Bluetooth

Bluetooth 4.2

2G/3G/4G (aṣayan)

GSM: B2/B3/B5/B8

WCDMA: B1/B2/B5/B8

TD-S: B34/B39

TDD: B38/B39/B40/B41N

FDD: B1/B2/B3/B4/B5/B7/B8/B11/B20/B28a/B28b

GNSS

GPS ti a ṣe sinu, Glonass, Beidou (G+G+B)

Igbẹkẹle ọja

Iwọn otutu ṣiṣẹ

-10°C ~50°C

Iwọn otutu ipamọ

-20°C ~ 60°C

Ọriniinitutu

95%, ti kii-condensing

Ohun ini Idaabobo

IP65 ifọwọsi, MIL-STD-810G ifọwọsi

Ju giga

1.22m isubu sooro
